Product Description

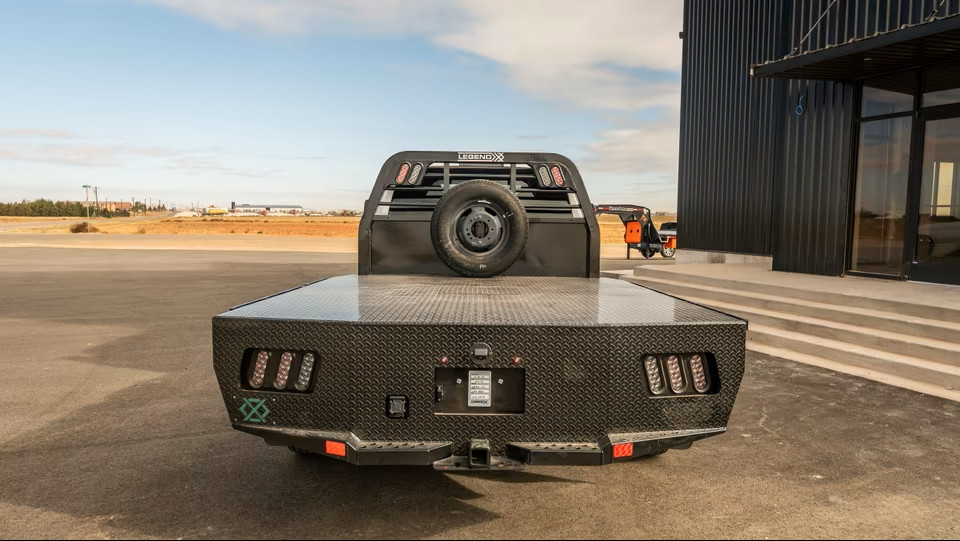

Legend X | Spartan Steel Flatbed | 30K Gooseneck & Rugged Non-Skirted Design
Built for people who demand more from their truck bed, the Legend X Spartan Series combines rugged durability, practical cargo control, and dependable towing capability into a straightforward, work-ready design. Engineered to withstand demanding conditions, the Spartan delivers the ultimate reliability and utility a working truck needs every single day.
Available Flatbed Lengths
The Spartan is manufactured in multiple lengths to match a variety of truck rear-wheel configurations and Cab-to-Axle (CA) measurements. Available footprints include:
Short Bed: 7' 0"
Standard / Long Bed: 8' 6"
Cab & Chassis: 9' 4"
Extended Cab & Chassis: 11' 4"
Legend X Spartan Sizing & Fitment Guide
To ensure a perfect fit, flatbed dimensions must match your truck's specific Cab-to-Axle (CA) measurement and rear-wheel configuration (SRW vs. DRW). Use the guide below to find the correct Spartan bed length for your chassis:
| Bed Length | Cab-to-Axle (CA) | Typical Vehicle Application |
|---|---|---|
| 7' 0" | 42" CA | Short Bed Pickup Box Delete (SRW) |
| 8' 6" | 56" – 58" CA | Long Bed Pickup Box Delete (SRW or DRW) |
| 9' 4" | 60" CA | Standard Commercial Cab & Chassis |
| 11' 4" | 84" CA | Extended Commercial Cab & Chassis |
*Fitment can also be affected by chassis generation, fuel tank placement, and factory safety sensors. Contact Riverside Trailers to verify exact dimensions for your specific make and model.
The Structural Backbone: Built to Carry the Workday
The Spartan utilizes a heavy-duty architecture to prevent sagging and ensure maximum longevity under payload. The primary foundation relies on solid 4” Structural Steel Channel Frame Rails to provide extreme strength and internal rust prevention without roll-formed runners. The subframe utilizes robust 10-Gauge Channel Crossmembers. The top working surface is a high-strength 1/8" Steel Treadplate Deck. Every bed is protected by a high-quality, super durable powder-coated finish over a powder primer.
Comprehensive Standard Features
- Elite Towing Setup: Pull heavy trailers effortlessly using the independently tested 30,000 lb. Rated Gooseneck Hitch. Safely tow heavy bumper-pull loads via the integrated 24,000 lb. Rated Bumper Pull Hitch featuring a standard 2.5" receiver.
- Integrated Tube Headache Rack: The 3 1/2" tube design adds durable cab support and protection from shifting cargo.
- Cargo Securing: Designed with 1.5" wide by 3" high structural side rails and integrated stake pockets, providing multiple tie-down points for securing different kinds of cargo.
- Deck Access: Features a diamond-plated rear skirt that incorporates a sturdy step for dependable access to the deck.
- Premium Wiring: Equipped with a modular sealed wiring harness built to resist corrosion, wear, and disconnection in demanding conditions. Includes a standard 7-way round plug on the rear tailboard and a 7-way electrical connection at the gooseneck.
Available Factory Options
Customize your Legend X Spartan bed with options designed for towing, storage, lighting, and daily utility:
- Decking & Build Upgrades: Upgrade to a heavier-duty 3/16" Tread Plate floor, select a Square Back Bed (no taper) for more usable rear space, or add an integrated Gooseneck Trough.
- Cargo Control: Swap standard rails for a Fold Down Rail Set for easier loading, or upgrade to a complete Flatbed Bale Spike Package featuring a KTI hydraulic pump and under-bed spike storage.
- Storage & Racks: Add a Bolted Headache Rack Toolbox for secure front-mounted storage of chains and straps, or equip a Spare Tire Mount (Standard on Cab & Chassis models).
- Styling & Lighting: Add a forward-facing LED Light Bar to the headache rack, upgrade to a Color Match finish, or add SRW/DRW fitted mudflaps.
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety, camera, and powertrain systems that directly impact upfit requirements. We offer professional, in-house installations in our Jerome service bays to seamlessly manage modern truck complexities like backup cameras, parking sensors, and DEF filler neck routing.
Our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Trailers in Jerome, ID Today
Equip your truck with the ultimate Legend X flatbed. Stop by our lot at Riverside Trailers in Jerome, ID, serving the Twin Falls, Burley, and Mountain Home communities. Call our commercial upfitting experts today to verify inventory, confirm your truck's chassis measurements, and build the perfect Spartan bed for your fleet!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
