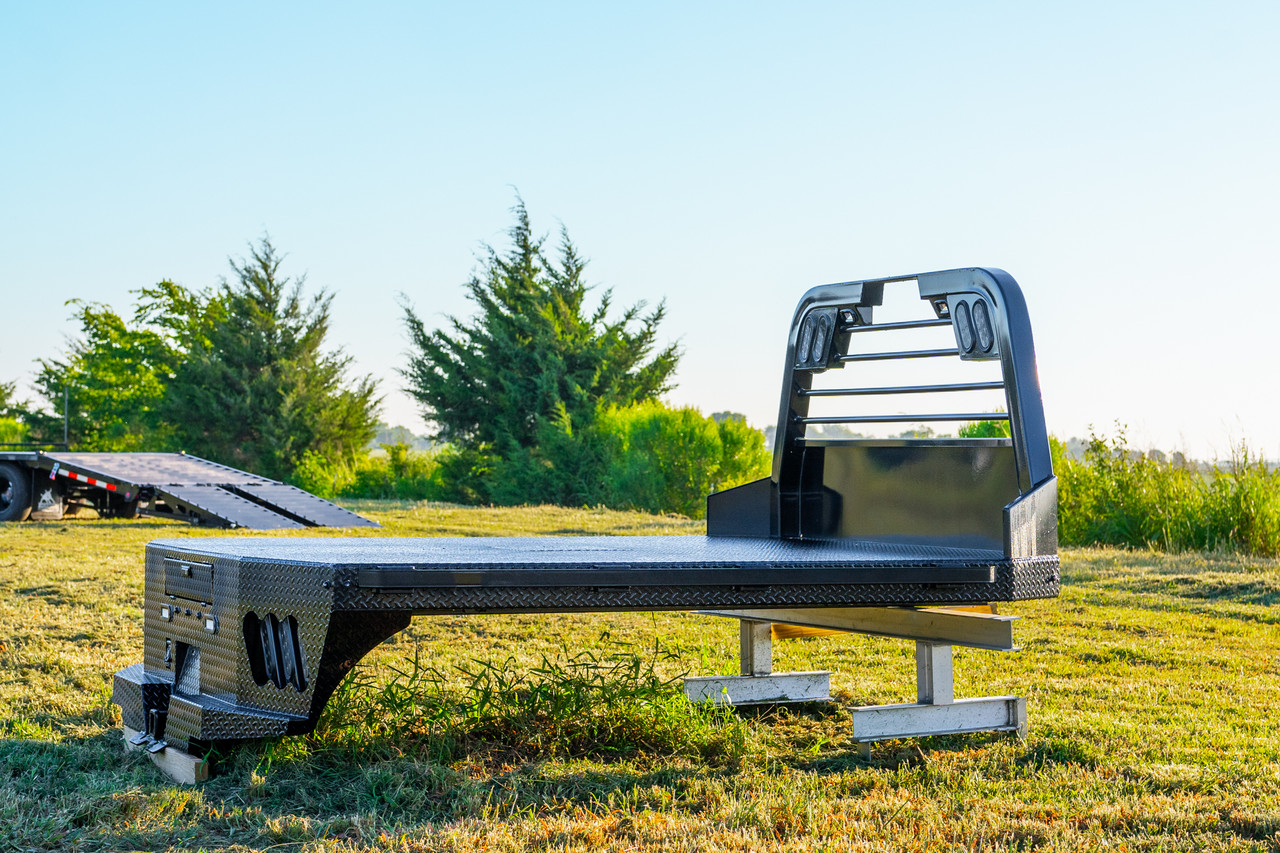

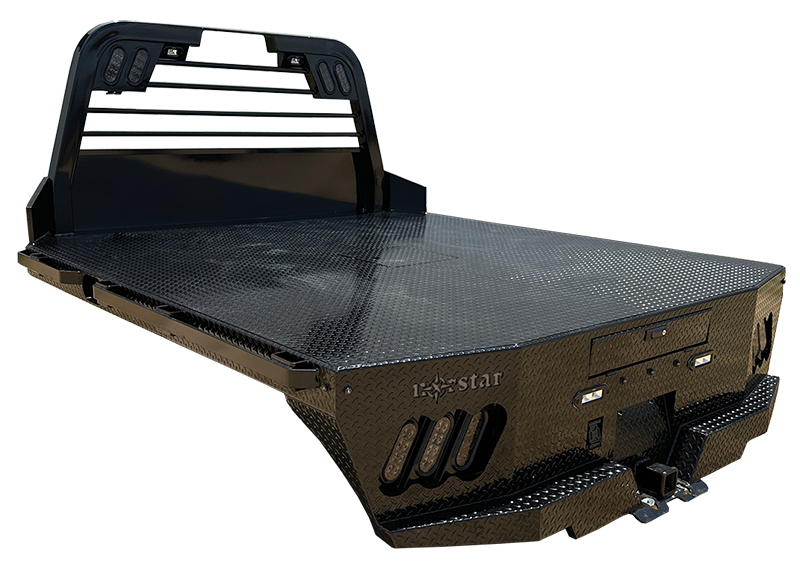

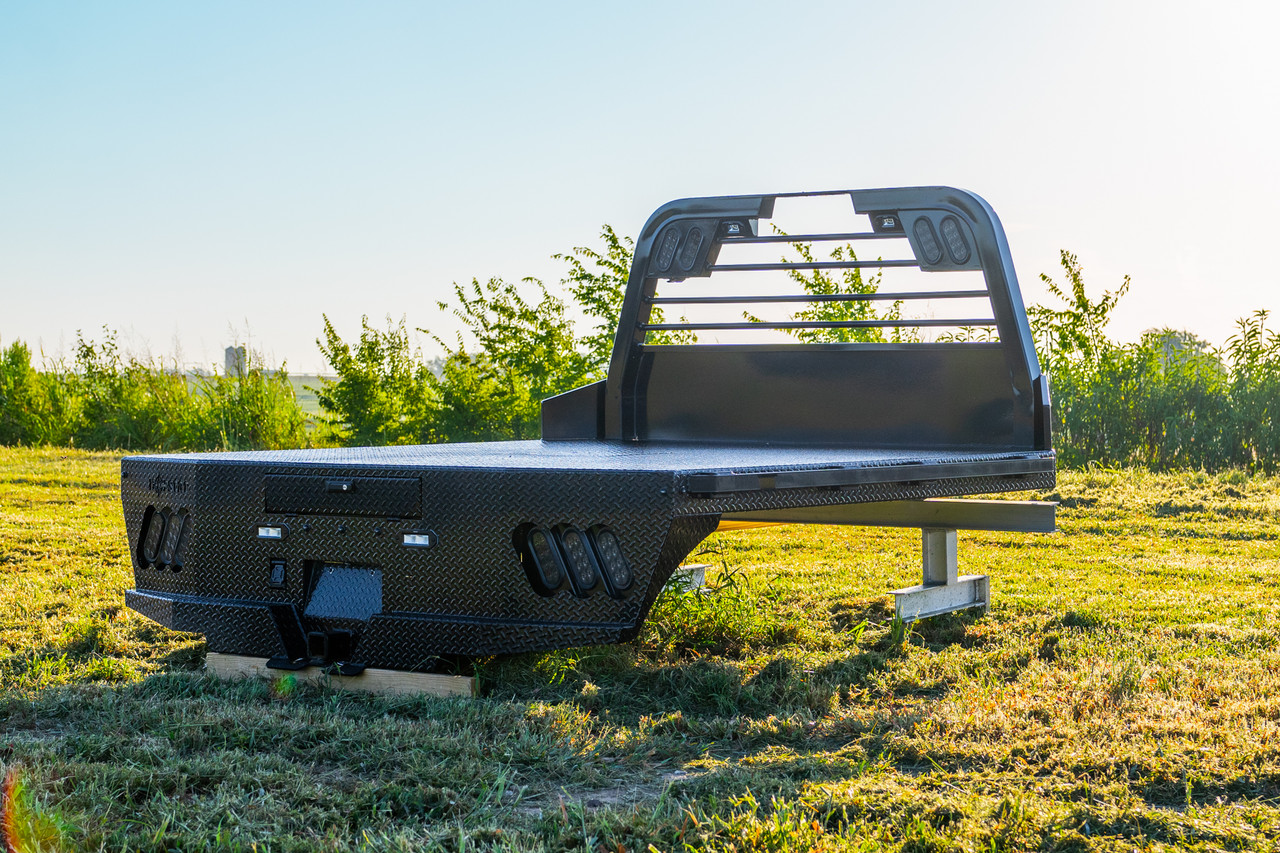

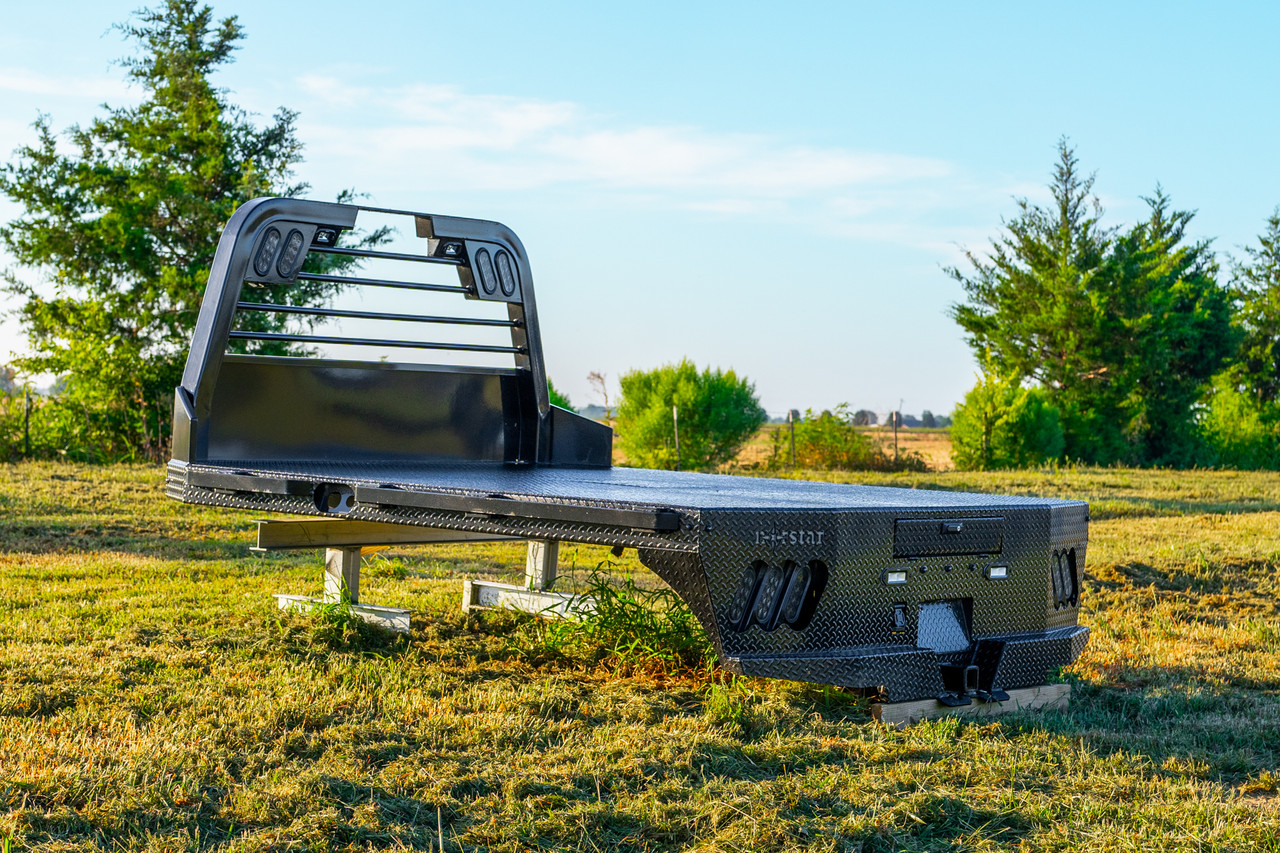

Norstar | SR Diamond Plate Flatbed | 1/8" Steel Deck, Exhaustive Feature Upgrades, & Complete Fitment Guide

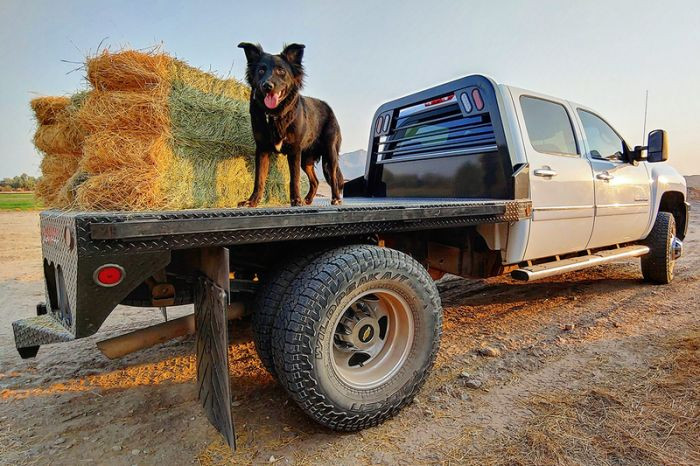

The Norstar SR Diamond Plate Flatbed is a highly practical, durable, and multi-purpose configuration engineered to seamlessly transition your consumer pickup truck into heavy vocational machinery. As Norstar's flagship truck bed, it offers incredible structural rigidity and pre-engineered towing capacities right out of the factory. Packed with newly upgraded standard features—like smoked LED lighting, camera and sensor knockouts, high-visibility work lights, and a new rear lockable compartment—it is the perfect foundational workbed for field mechanics, agricultural operators, hotshot drivers, and demanding ranch work across the Magic Valley.
We stock a wide variety of sizes and configurations to fit diverse vehicle applications. Every truck requires specific fitment parameters based on its generation, rear-wheel configuration, and cab-to-axle (CA) measurements. Popular footprints include:
Available Flatbed Sizes & Vehicle Footprints
Flatbeds must be carefully sized based on single vs. dual rear wheel chassis capacity to ensure perfect wheel-well flare clearance and turning radii:
7' (84") W x 7' L: Engineered specifically for Single Rear Wheel (SRW) setups replacing factory short beds.
7' (84") W x 8.5' L: Standard 8-foot frame replacements for Single Rear Wheel (SRW) trucks.
8' (96") W x 8.5' L: Wide-deck configuration explicitly designed for Dual Rear Wheel (DRW) standard 1-ton swaps.
8' (96") W x 9.25' L: Extended length models built as a direct fit for commercial 60" Cab-to-Axle (CA) frames.
Norstar Truck Bed Size & Fitment Guide
Below is the master sizing chart to match the SR Diamond Plate Bed to your specific chassis runner width and CTA:
| Truck Make & Year | Configuration | Length x Width | Cab To Axle (CTA) | Frame Runners |
|---|---|---|---|---|
| Ford (1998 - 2017) & (2018+) | Single Wheel Short Bed | 84" x 84" | 40" | 38" |
| Ford (1998 - 2017) & (2018+) | Single Wheel Long Bed | 8'6" x 84" | 56" | 38" |
| Ford (1998 - 2017) & (2018+) | Dually | 8'6" x 97" | 56" | 38" |
View Full Truck Fitment Guide (Expand)
| Ford (1998 - 2017) & (2018+) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Ford (1998 - 2017) & (2018+) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Short Bed | 84" x 84" | 42" | 42" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Long Bed | 8'6" x 84" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Dually | 8'6" x 97" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| Dodge / RAM (2003 - Present) | Single Wheel Short Bed | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Single Wheel Long Bed | 8'6" x 84" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Single Wheel) | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Dually) | 84" x 97" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Dually | 8'6" x 97" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Dodge / RAM (2003 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
The Structural Backbone: Built for Abuse

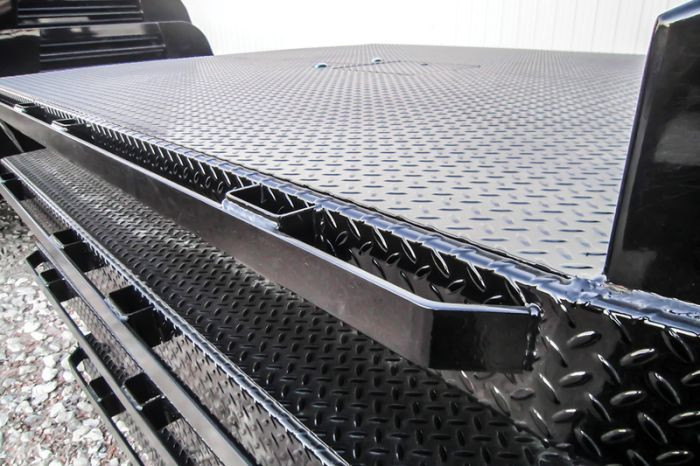

The Norstar SR model does not compromise on frame strength. The chassis runs on massive 4" structural channel main rails backed by heavy formed 3" x 3/16" channel cross-member support webs. This framework is capped with a rugged 1/8" diamond plate steel floor deck, ensuring it can handle dropping pallets, heavy equipment, and constant abrasive wear without oil-canning or tearing.
Comprehensive Standard Features
The SR arrives fully loaded with heavy-duty construction elements and newly upgraded convenience features to maximize job site efficiency.
- Heavy Duty Frame: Structural Steel Frame with 4” Runner Channels (Adjustable on 84”, 8’6” Only), Formed 3 x 3/16” Channel Cross Members, and a Steel 1/8” Diamond Plate Floor. The body utilizes 1/8” Diamond Plate Construction with an 11 Ga Skirted Rear Bumper. Fully Primed and Powder Coated Black.
- Elite Towing Setup: Built-In Gooseneck Well w/ Ball Mounted & Diamond Plate Lid housing a 30k Rated 2 5/16” GN Ball. The rear features a 2.5” 18.5k Rated Receiver.
- Upgraded Hardware & Integration: New Rear Lockable Compartment, bolt-on hinges, and dedicated knockouts for cameras (with mounting bracket), sensors, and spare tires. Includes an Angled Fuel Filler Neck and Upgraded DEF & Fuel Together.
- Upgraded LED Lighting: Steel Tube Notched Head Rack for GN camera visibility, featuring cross bars, tail & reverse lights, and 2 new 20W work lights with switches. The rear includes 2 new 40W work lights with switches. All lighting features upgraded smoked lenses, including 3/4” LED Marker Lights, 4 Smoked 6” Oval LED Reverse Lights, 6 Smoked 6” Oval LED ST/TL/TN Lights, and a Single LED License Plate Light.
- Electrical & Accessories: Molded Sealed Harness with Resistors, 4/5 & 7 Way Receiver Female Plug with Adapter, 7 Way Plug in Gooseneck Well, and Adjustable Mudflap Brackets.
Available Options & Appearance Packages
Customize your Norstar SR Bed with premium individual options or bundled appearance packages:
- P01 Appearance Package: Rear Stake Pockets w/ Rub Rail.
- P02 Appearance Package: Includes Aluminum Diamond Plate Trim and Smooth Stainless Steel Polished Fenders.
- P03 Appearance Package: Includes Chrome Accent Light Package, Aluminum Cast Rear License Plate Housing, Chrome Tail Light Housing (Not available on SRW), Smooth Stainless Steel Polished Fenders, and Diamond Plate Trim.
- Towing Options: Gooseneck Trough and B & W Turnover Ball 2-5/16".
- Body Options: Extend Head Rack From Standard Height.
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety and powertrain systems that directly impact upfit requirements. We offer full in-house installation services Monday - Friday in our dedicated service bays.
Whether you require the relocation of factory backup cameras into the new Norstar camera brackets, integration of parking proximity sensors into the rear knockouts, or clean routing of Dual-Fuel and DEF tank necks, our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Trailers in Jerome, ID Today
Transform your pickup into a heavy-duty commercial asset. We stock multiple sizes and configurations to get your truck back on the road and working hard. Stop by our lot at 322 W Yakima Ave in Jerome, ID, serving the Twin Falls, Burley, and Mountain Home communities. Call our flatbed and upfitting experts today at 208-324-0400 to verify inventory, confirm your truck's CTA measurements, and build the perfect Norstar SR flatbed for your fleet!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
Product Specifications
Warranty Information
Norstar Truck Beds & Flatbeds Factory Warranty
When you invest in a Norstar truck bed, you are backed by one of the most reliable warranties in the commercial industry. The following coverage applies to new Norstar flatbeds:
- 3-Year Structural Limited Warranty: Covers structural defects on parts manufactured by Norstar, including the main frame, subframe, crossmembers, and railings.
- 2-Year Comprehensive Limited Warranty: Covers defects in materials, components, and workmanship.
- 1-Year Paint Finish Warranty: Under the comprehensive warranty, the paint finish is warranted against peeling and cracking.
- Third-Party Components: Any individual components not manufactured directly by Norstar are covered by the warranties provided by their respective original manufacturers.
*To activate this coverage, products must be registered online with the manufacturer within 30 days of the original retail purchase.
