Buyers Products | SnowDogg VXX105II 126" Snow Plow | Halogen Lights, 126" Blade, Class 4, 5 and 6 Trucks, Mounting Kits Not Included
When a standard plow isn't enough for your biggest trucks, it's time to bring out the heavy armor. Built directly from years of real-world contractor feedback and subjected to rigorous multi-season testing, the Buyers Products SnowDogg VXX105II V-Plow is the largest, strongest V-plow on the market.
Spanning an imposing 10.5 feet, this massive commercial-grade beast is designed specifically for Class 4-6 municipal and heavy-duty commercial trucks (including Ford® F-450/F-550, RAM® 4500/5500, and GM® 4500/5500 setups). When you need to clear sprawling corporate lots, municipal roadways, or deep mountain drifts, the VXXII delivers maximum volume handling with the versatile control of an adjustable V-blade, massive scoop, and rugged straight plow.

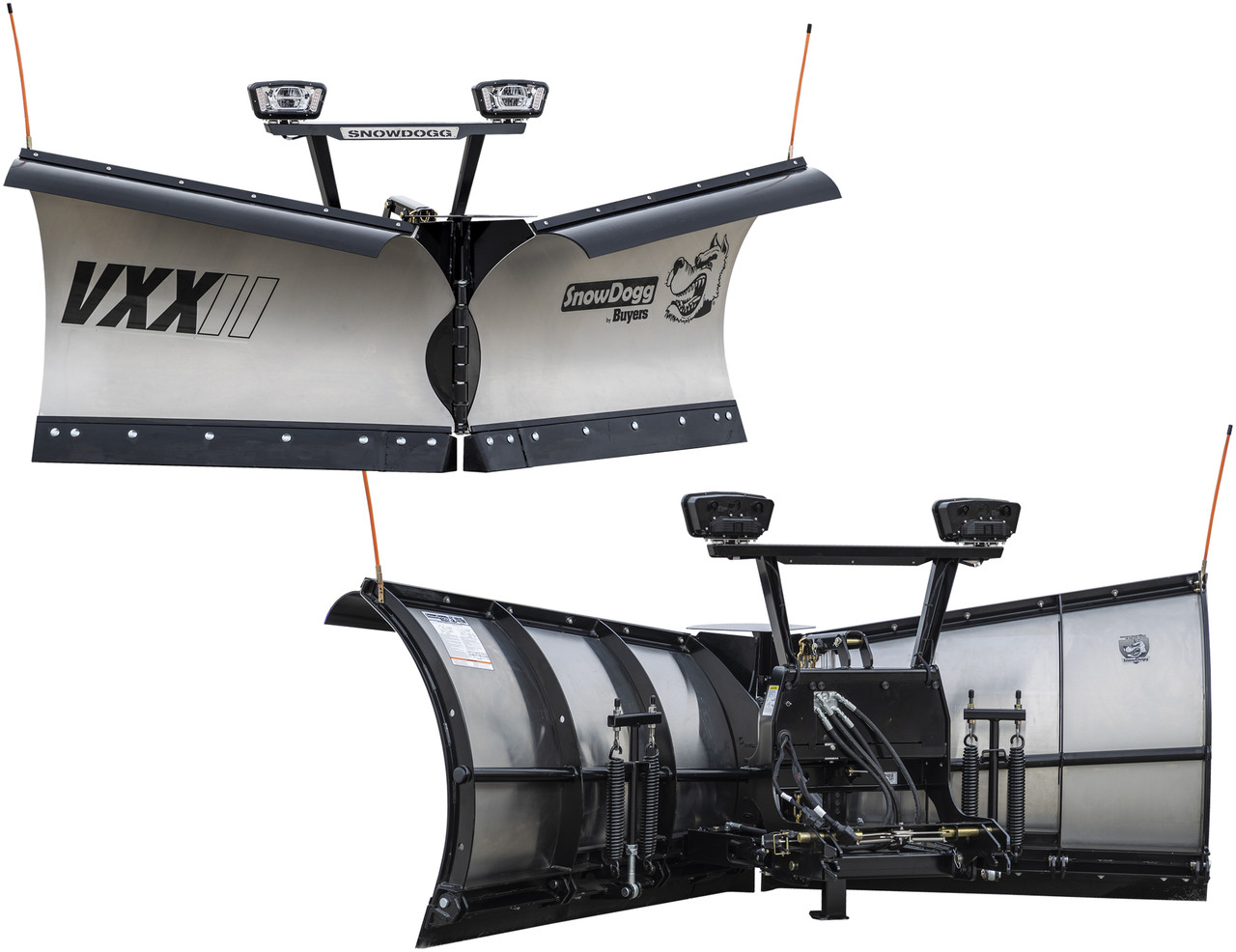

Engineered to take a beating day after day, the VXX105II cuts down on maintenance so you can stay out on the road. The dual corrosion-resistant 304 stainless steel moldboards never chip, rust, or require painting. Its brute-strength skeletal framework distributes massive impact forces evenly across the entire structure to protect your truck’s frame

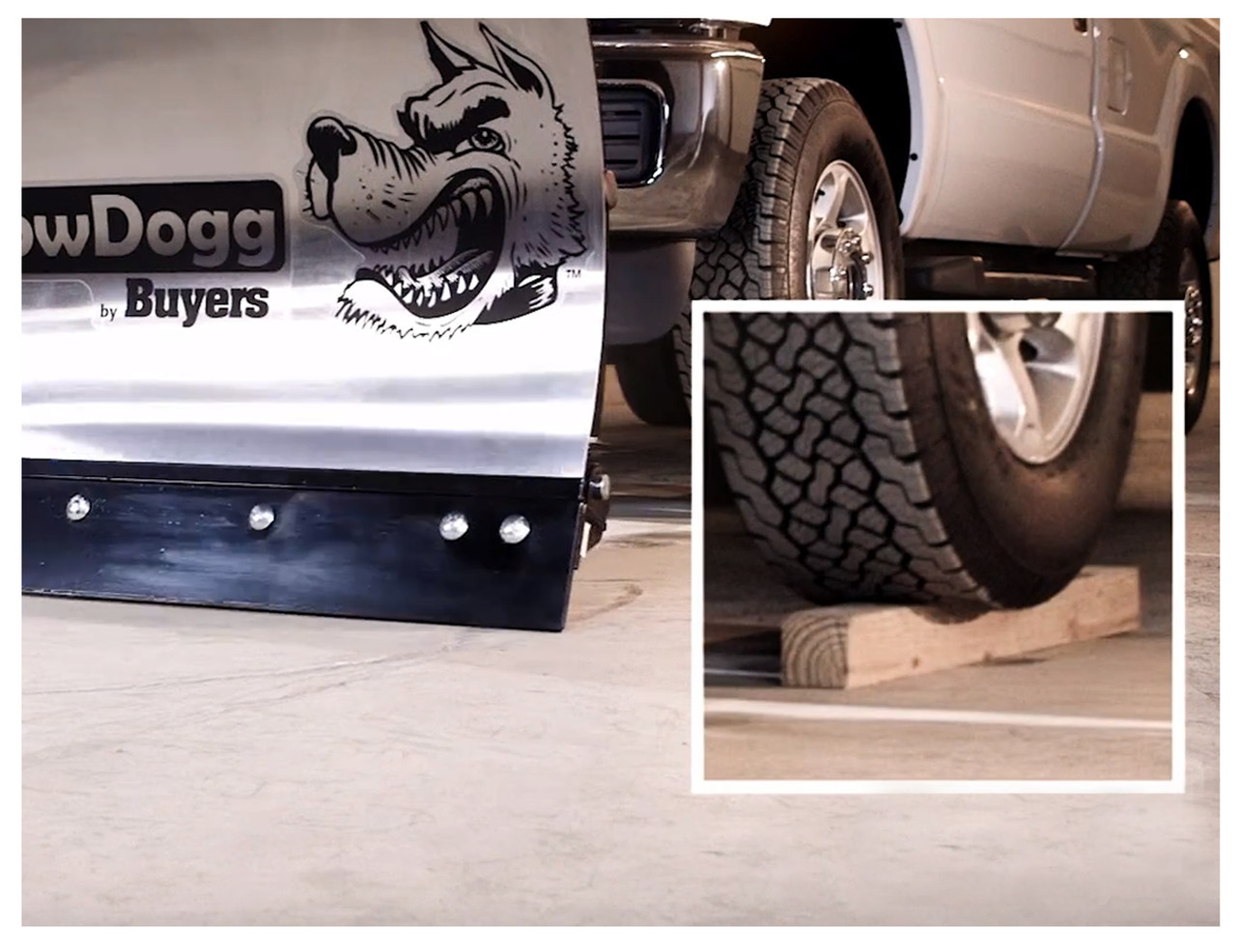

Unlike standard light-duty setups, the VXX105II transitions to a municipal-style chain lift system. Coupled with an advanced tubular steel Floating A-Frame utilizing a sliding-pin connection, the plow naturally contours to uneven asphalt and highly crowned roads. This configuration ensures an immaculate scrape at any mounting height, while giving you the unmatched stacking and lifting leverage required for multi-ton snowbanks.

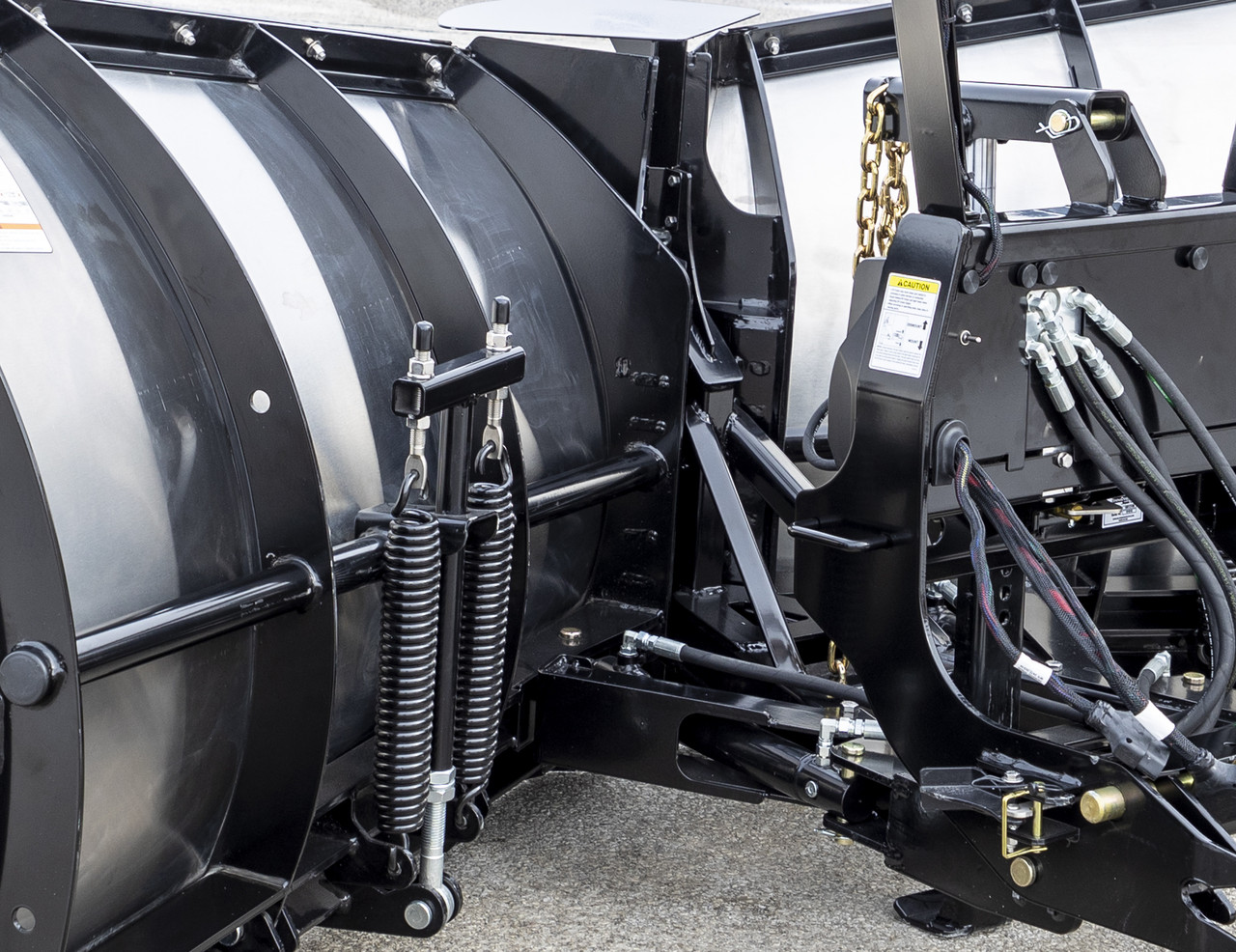

Hitting hidden curbs, manhole covers, or frozen rocks at speed can wreck a lesser plow. The VXXII protects your investment with an independent 6-inch trip edge on each wing, supported by two stress-optimized trip springs. When an obstacle is struck, only the lower edge trips back to absorb the energy, allowing you to maintain your momentum and keep pushing your massive load without dumping the snow.
Equipped with heavy-duty double-acting 1–3/4 in. angle cylinders, this plow locks its wings into position with unyielding hydraulic force. Back drag away from loading docks, dumpster enclosures, and gated entryways with total control, preventing the wings from folding or spilling snow backward.
Don't waste valuable billable time wrestling with a heavy plow setup in the freezing dark. The VXX105II lets a single operator connect or detach the entire unit in one minute or less on any surface.
Note: Vehicle-specific truck mounts and headlight adapters are sold separately.
SnowDogg VXXII Snow Plow Features:
- 2 HP Hydraulic Power Unit: A fully enclosed, high-output motor provides lightning-fast wing adjustments and lift response.
- SAE Standard Cartridge Valves: Commercial-grade internal valves minimize fluid friction and prevent freeze-ups.
- Hefty 3/8 in. Rubber Hoses: High-pressure, abrasion-resistant rubber lines run through optimized routing channels to eliminate pinching, rubbing, or stretching during radical wing articulations.
- One-Handed Backlit Controller: An intuitive, ergonomic in-cab digital controller designed to be operated flawlessly with thick work gloves. Toggle instantly between V-shape, deep Scoop, Left/Right Angle, and traditional straight configurations.

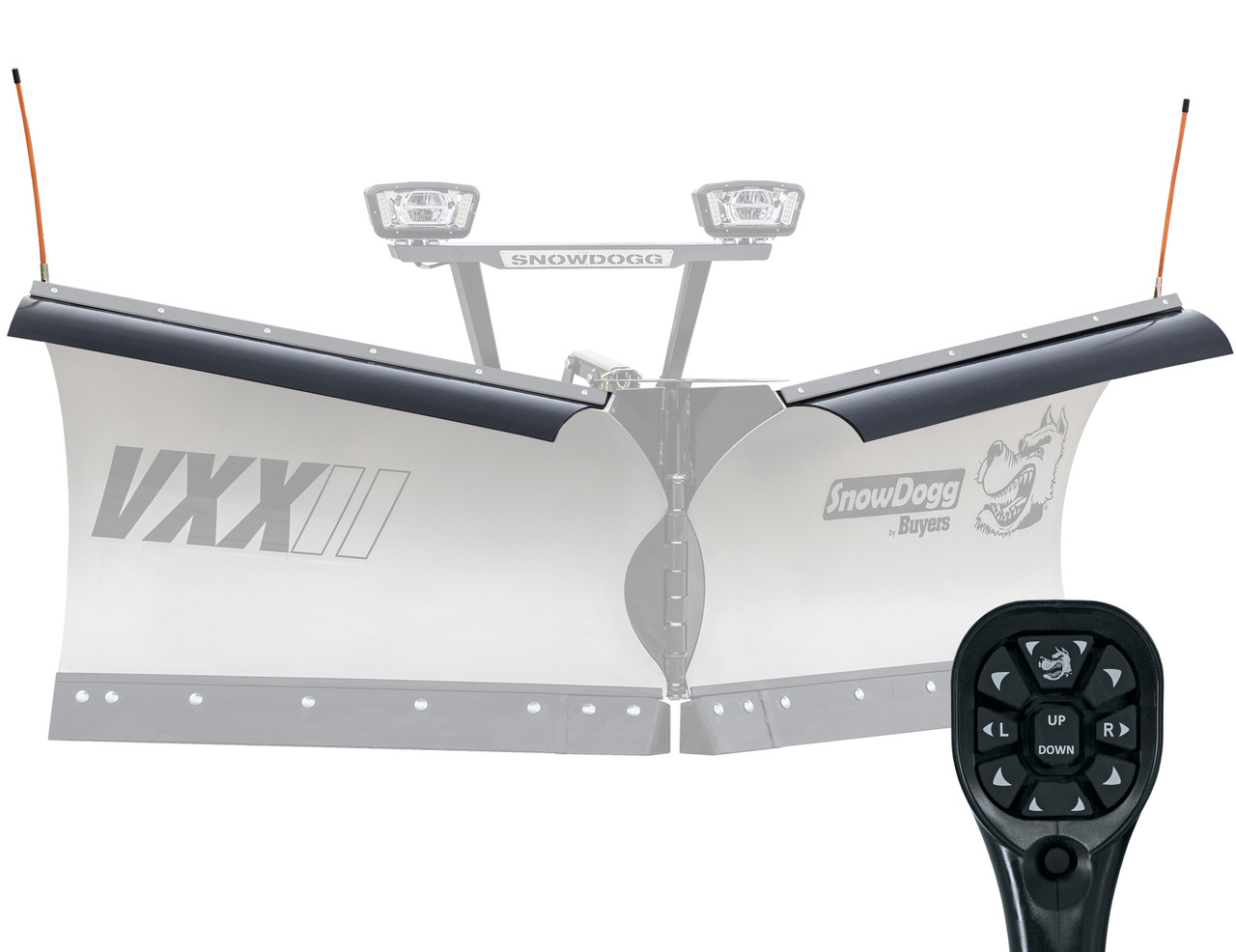

- Contoured Poly Snow Deflector: Keeps heavy, blinding powder rolled tight to the ground and away from your truck’s radiator and windshield.
- Wire-Reinforced Blade Guides: Heavy-duty, high-visibility orange guides sit out on the flared tips, giving operators a precise visual point of reference for the edge of the 10.5-foot blade when maneuvering near parked cars and commercial curbs.
Product Specification:
- Plow Type V Plow
- Trip Style Trip Edge
- Moldboard Material 304 Stainless Steel
- Moldboard Thickness 12 Ga
- Blade Width 126 "
- Angled Blade Width 110.0 "
- Blade Height 35/45 "
- Ribs 8
- Cutting Edge 5/8 x 6 "
- Plow Shoes Optional
- Snow Deflector Contoured Poly
- Lights Dual Halogen Bulbs or Illuminator™ Heated LEDs
- Electrical Headlamp Rated Replaceable Micro-ISO Relays
- Harnesses Separate Light and Hydraulic 4GA Power Wires
- Trip Springs 4
- Angle Cylinders 1 1/2 x 1 3/4 x 12 "
- Lift Cylinder 2 x 6 "
- Mounting System RapidLink™ Attachment System
- Stand Drop Leg
