Legend X | Titan Service Body | Standard B&W Turnover Ball & Premium Storage
The Legend X Titan Series is a heavy-duty service body built to handle the most demanding commercial workloads. Offering unparalleled storage organization alongside standard premium towing and lighting upgrades, the Titan is engineered to serve as the ultimate mobile workstation for operators who need their tools secure and their truck ready to pull.
Available Flatbed Lengths
The Titan Service Body is manufactured in multiple lengths to match a variety of truck rear-wheel configurations and Cab-to-Axle (CA) measurements. Available footprints include:
Short Bed: 7' 0"
Standard / Long Bed: 8' 6"
Cab & Chassis: 9' 4"
Extended Cab & Chassis: 11' 4"
Legend X Titan Sizing & Fitment Guide
To ensure a perfect fit, flatbed dimensions must match your truck's specific Cab-to-Axle (CA) measurement and rear-wheel configuration (SRW vs. DRW)[cite: 2]. Use the guide below to find the correct Titan bed length for your chassis:
| Bed Length | Cab-to-Axle (CA) | Typical Vehicle Application |
|---|---|---|
| 7' 0" | 42" CA | Short Bed Pickup Box Delete (SRW)[cite: 2] |
| 8' 6" | 56" – 58" CA | Long Bed Pickup Box Delete (SRW or DRW)[cite: 2] |
| 9' 4" | 60" CA | Standard Commercial Cab & Chassis[cite: 2] |
| 11' 4" | 84" CA | Extended Commercial Cab & Chassis[cite: 2] |
*Fitment can also be affected by chassis generation, fuel tank placement, and factory safety sensors[cite: 2]. Contact Riverside Trailers to verify exact dimensions for your specific make and model.
The Structural Backbone: Built to Carry the Workday

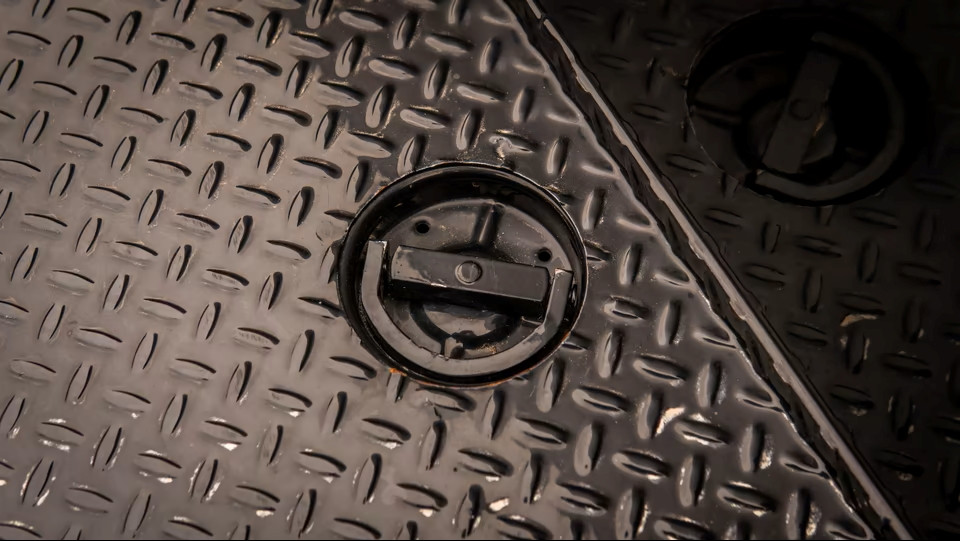

The Titan utilizes a heavy-duty architecture to prevent sagging and ensure maximum longevity under heavy payload. The primary foundation relies on solid 4” Structural Steel Channel Frame Rails to provide extreme strength and internal rust prevention. The subframe utilizes robust 10-Gauge Channel Crossmembers. The top working surface is a high-strength 1/8" Steel Treadplate Deck. Every bed is protected by a high-quality, super durable powder-coated finish.
Comprehensive Standard Features

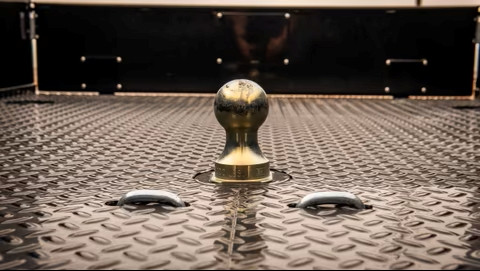

- Standard B&W Turnover Ball: Features a clean, flush-mount gooseneck towing setup standard from the factory, staying completely out of the way when not in use.
- Standard LED Light Bar: Comes equipped with a bright LED light bar mounted to the headache rack for early starts, late finishes, and superior visibility on the job.

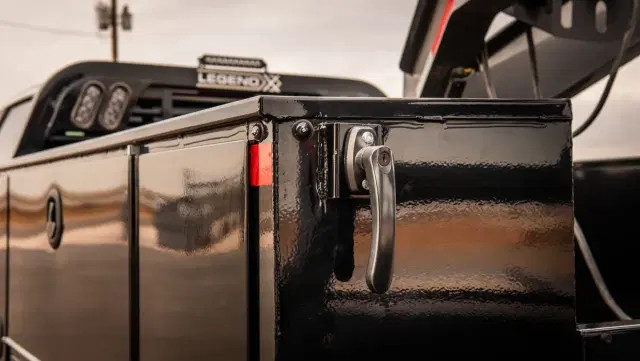

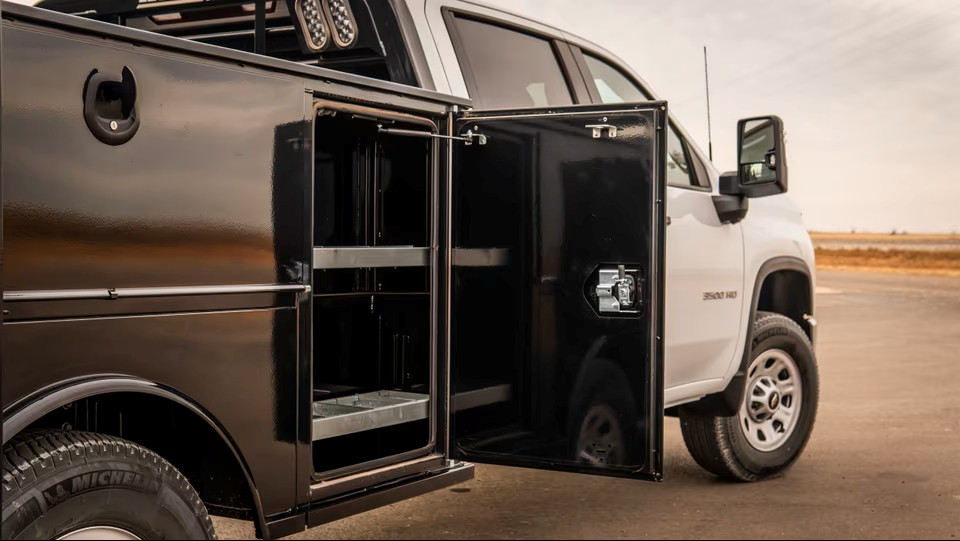

- Elite Service Storage: Deep, secure service body compartments feature compression latches to keep your gear safe, organized, and weather-protected.

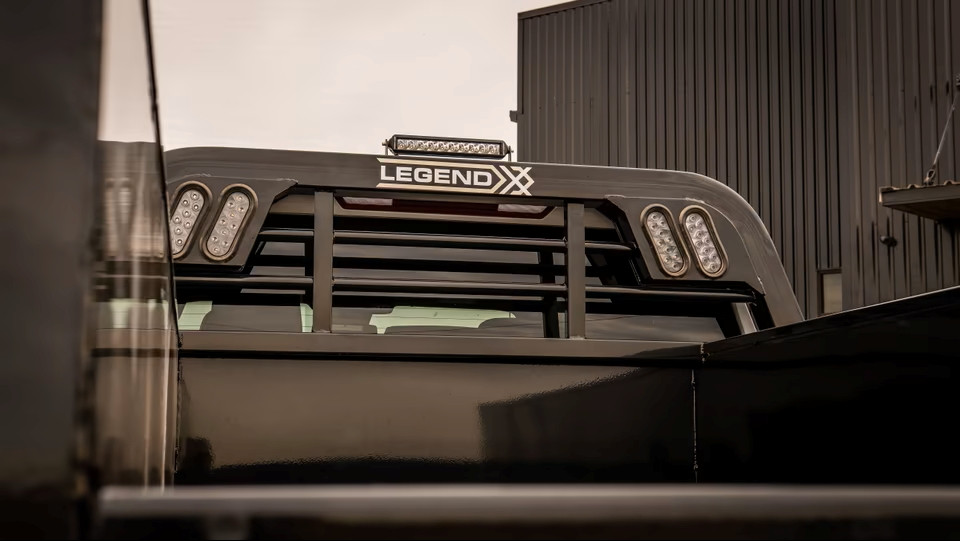

- Integrated Tube Headache Rack: The 3 1/2" tube design adds durable cab support and protection from shifting cargo.
- Receiver Hitch: Safely tow heavy bumper-pull loads via the integrated 24,000 lb. Rated Bumper Pull Hitch featuring a standard 2.5" receiver.
- Premium Wiring: Equipped with a modular sealed wiring harness built to resist corrosion. Includes a standard 7-way round plug on the rear tailboard and a 7-way electrical connection at the gooseneck.
Available Factory Options
Customize your Legend X Titan bed with options designed for enhanced daily utility:
- Decking Upgrades: Upgrade to a heavier-duty 3/16" Tread Plate floor for the toughest, most concentrated loads.
- Storage Optimization: Maximize your compartment usability with a Pull-Out Drawer Pack to help organize tools, parts, and smaller gear safely.
- Styling & Accessories: Upgrade to a custom Color Match finish, add SRW/DRW fitted mudflaps to protect your chassis, or equip a Spare Tire Mount (Standard on Cab & Chassis models).
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety, camera, and powertrain systems that directly impact upfit requirements. We offer professional, in-house installations in our Jerome service bays to seamlessly manage modern truck complexities like backup cameras, parking sensors, and DEF filler neck routing[cite: 1, 2].
Our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Trailers in Jerome, ID Today
Equip your truck with the ultimate Legend X service body. Stop by our lot at Riverside Trailers in Jerome, ID[cite: 1], serving the Twin Falls, Burley, and Mountain Home communities. Call our commercial upfitting experts today to verify inventory, confirm your truck's chassis measurements, and build the perfect Titan bed for your fleet!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
