Product Description

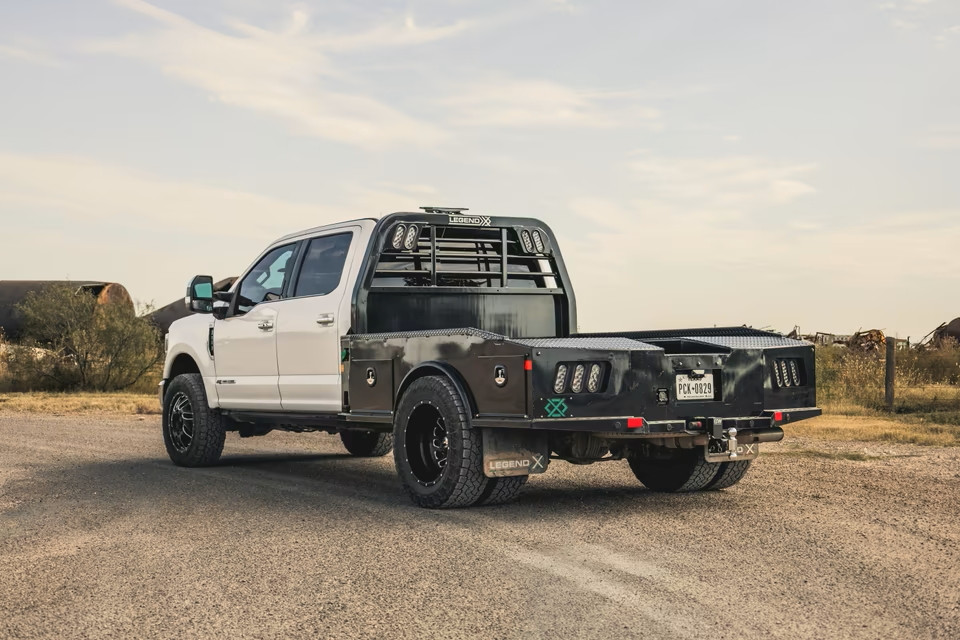

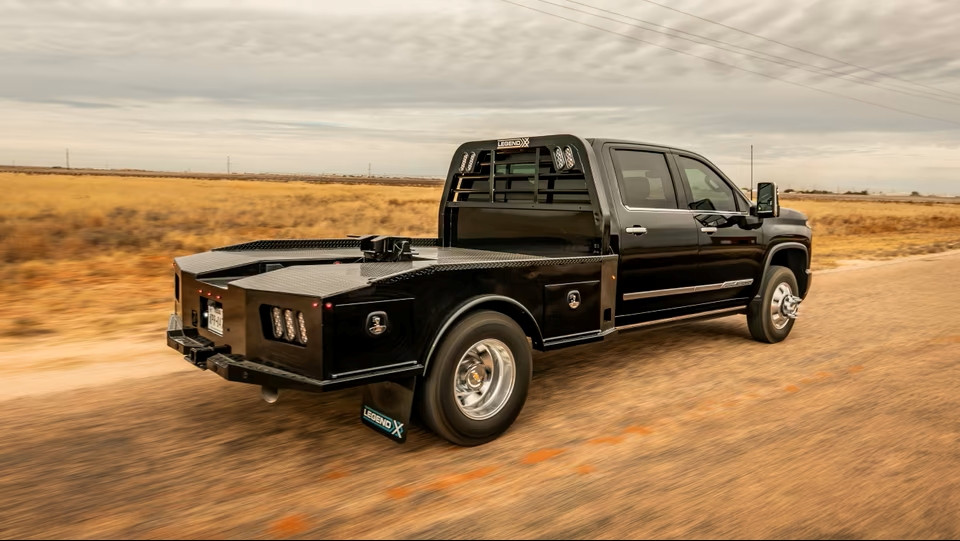

Legend X | Phoenix Skirted Dovetail Bed | Gooseneck Trough & Rotating D-Rings
The Legend X Phoenix Series brings together practical hauling capability and a streamlined dovetail design. Its low-profile deck hardware and integrated gooseneck trough are engineered to keep work moving while maintaining a clean, professional look. Built for operators who demand a highly adaptable deck surface without sacrificing towing strength, the Phoenix is ready for demanding daily work.
Available Flatbed Lengths
The Phoenix is manufactured in multiple lengths to match a variety of truck rear-wheel configurations and Cab-to-Axle (CA) measurements. Available footprints include:
Short Bed: 7' 0"
Standard / Long Bed: 8' 6"
Cab & Chassis: 9' 4"
Extended Cab & Chassis: 11' 4"
Legend X Phoenix Sizing & Fitment Guide
To ensure a perfect fit, flatbed dimensions must match your truck's specific Cab-to-Axle (CA) measurement and rear-wheel configuration (SRW vs. DRW). Use the guide below to find the correct Phoenix bed length for your chassis:
| Bed Length | Cab-to-Axle (CA) | Typical Vehicle Application |
|---|---|---|
| 7' 0" | 42" CA | Short Bed Pickup Box Delete (SRW) |
| 8' 6" | 56" – 58" CA | Long Bed Pickup Box Delete (SRW or DRW) |
| 9' 4" | 60" CA | Standard Commercial Cab & Chassis |
| 11' 4" | 84" CA | Extended Commercial Cab & Chassis |
*Fitment can also be affected by chassis generation, fuel tank placement, and factory safety sensors. Contact Riverside Trailers to verify exact dimensions for your specific make and model.
The Structural Backbone: Built to Carry the Workday
The Phoenix utilizes a heavy-duty architecture to prevent sagging and ensure maximum longevity under payload. The primary foundation relies on solid 4” Structural Steel Channel Frame Rails to provide extreme strength and internal rust prevention without roll-formed runners. The subframe utilizes robust 10-Gauge Channel Crossmembers. The top working surface is a high-strength 1/8" Steel Treadplate Deck. Every bed is protected by a high-quality, super durable powder-coated finish over a powder primer.
Comprehensive Standard Features

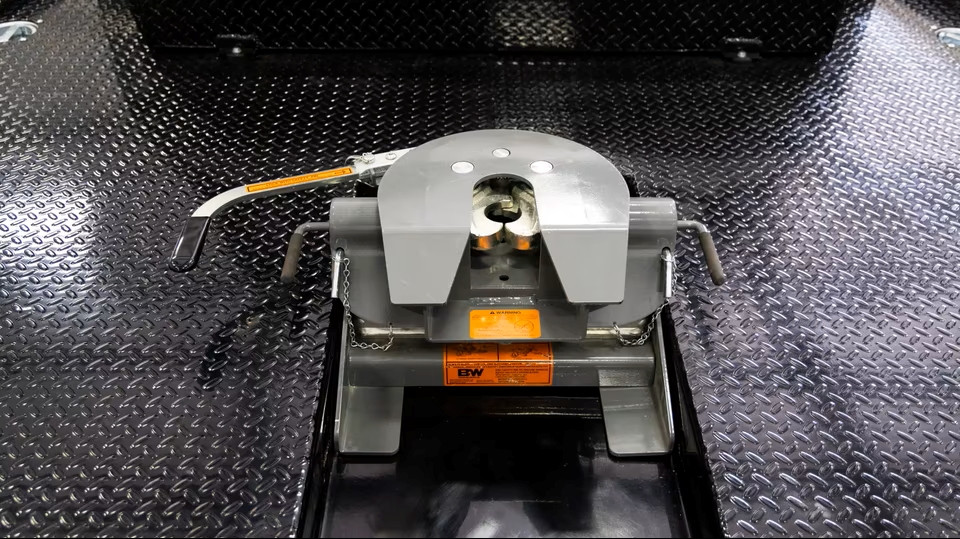

- Dovetail Gooseneck Trough: Features an 18 1/8" dovetail gooseneck trough that simplifies trailer hookups and accommodates a B&W Companion fifth wheel.
- Elite Towing Setup: Pull heavy trailers effortlessly using the independently tested 30,000 lb. Rated Gooseneck Hitch. Safely tow heavy bumper-pull loads via the integrated 24,000 lb. Rated Bumper Pull Hitch featuring a standard 2.5" receiver.
- Flush-Mount D-Rings: Four flush-mounted, 360° rotating D-rings provide flexible strap angles while staying incredibly low-profile when not in use.
- Integrated Tube Headache Rack: The 3 1/2" tube design adds durable cab support and protection from shifting cargo.
- Deck Access: Features an integrated side step built directly into the front skirt, providing a sturdy, direct way to climb onto the deck and manage loads.
- Premium Wiring: Equipped with a modular sealed wiring harness built to resist corrosion, wear, and disconnection in demanding conditions. Includes a standard 7-way round plug on the rear tailboard and a 7-way electrical connection at the gooseneck.
Available Factory Options
Customize your Legend X Phoenix bed with options designed for towing, storage, and daily utility:
- Decking & Build Upgrades: Upgrade to a heavier-duty 3/16" Tread Plate floor, or choose the Gooseneck Trough Delete option to remove the trough for a flatter, cleaner deck layout and uninterrupted floor space.
- Cargo Control: Add a durable outer Rub Rail to help protect the bed and give you a solid edge for securing cargo.
- Storage & Accessories: Add a Bolted Headache Rack Toolbox for secure front-mounted storage, or equip a Spare Tire Mount (Standard on Cab & Chassis models).
- Styling & Finishes: Upgrade to a custom Color Match finish, or add SRW/DRW fitted mudflaps to protect your chassis.
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety, camera, and powertrain systems that directly impact upfit requirements. We offer professional, in-house installations in our Jerome service bays to seamlessly manage modern truck complexities like backup cameras, parking sensors, and DEF filler neck routing.
Our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Trailers in Jerome, ID Today
Equip your truck with the ultimate Legend X flatbed. Stop by our lot at Riverside Trailers in Jerome, ID, serving the Twin Falls, Burley, and Mountain Home communities. Call our commercial upfitting experts today to verify inventory, confirm your truck's chassis measurements, and build the perfect Phoenix bed for your fleet!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
