Product Description
Legend X | Viking Pro Skirted Flatbed | Upright Toolboxes, LED Work Light & 30K Gooseneck
Built for professionals who demand more, the Legend X Viking Pro takes the versatility of the standard Viking flatbed to the next level. By adding two lockable upright toolboxes for enhanced storage and a bright LED work light mounted to the headache rack, the Viking Pro is engineered to organize your gear, illuminate the job site after dark, and handle the most demanding daily workloads with ease.
Available Flatbed Lengths
The Viking Pro is manufactured in multiple lengths to match a variety of truck rear-wheel configurations and Cab-to-Axle (CA) measurements. Available footprints include:
Short Bed: 7' 0"
Standard / Long Bed: 8' 6"
Cab & Chassis: 9' 4"
Extended Cab & Chassis: 11' 4"
Legend X Viking Pro Sizing & Fitment Guide
To ensure a perfect fit, flatbed dimensions must match your truck's specific Cab-to-Axle (CA) measurement and rear-wheel configuration (SRW vs. DRW). Use the guide below to find the correct Viking Pro bed length for your chassis:
| Bed Length | Cab-to-Axle (CA) | Typical Vehicle Application |
|---|---|---|
| 7' 0" | 42" CA | Short Bed Pickup Box Delete (SRW) |
| 8' 6" | 56" – 58" CA | Long Bed Pickup Box Delete (SRW or DRW) |
| 9' 4" | 60" CA | Standard Commercial Cab & Chassis |
| 11' 4" | 84" CA | Extended Commercial Cab & Chassis |
*Fitment can also be affected by chassis generation, fuel tank placement, and factory safety sensors. Contact Riverside Trailers to verify exact dimensions for your specific make and model.
The Structural Backbone: Built to Carry the Workday
The Viking Pro utilizes a heavy-duty architecture to prevent sagging and ensure maximum longevity under payload. The primary foundation relies on solid 4” Structural Steel Channel Frame Rails to provide extreme strength and internal rust prevention without roll-formed runners. The subframe utilizes robust 10-Gauge Channel Crossmembers. The top working surface is a high-strength 1/8" Steel Treadplate Deck. Every bed is protected by a high-quality, super durable powder-coated finish over a powder primer.
Comprehensive Standard Features
- Elite Storage Layout: Features two upright toolboxes for added shelving and quick-access essential tool storage, combined with lower flush-mounted skirt boxes equipped with T-handle compression latches.
- Job Site Illumination: Comes standard with a bright LED Work Light mounted on the headache rack to illuminate the work area after dark, plus standard forward-facing LED light bars.
- Elite Towing Setup: Pull heavy trailers effortlessly using the independently tested 30,000 lb. Rated Gooseneck Hitch. Safely tow heavy bumper-pull loads via the integrated 24,000 lb. Rated Bumper Pull Hitch featuring a standard 2.5" receiver.

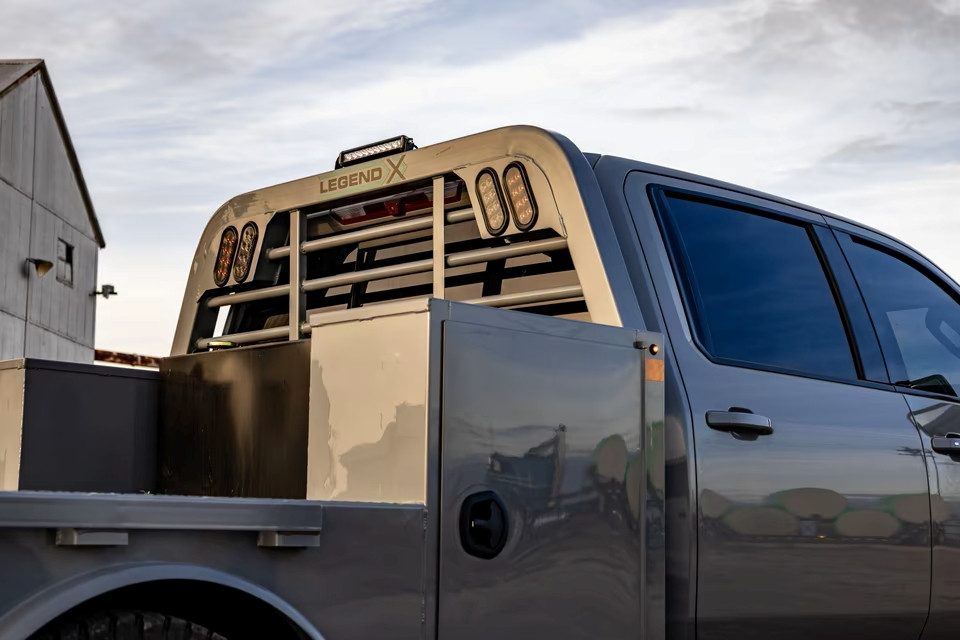

- Integrated Tube Headache Rack: The 3 1/2" tube design adds durable cab support and protection from shifting cargo.
- Cargo Securing: Designed with structural side rails and integrated stake pockets, providing multiple tie-down points for securing different kinds of cargo.
- Deck Access: Features an integrated side step built directly into the front skirt, providing a sturdy, direct way to climb onto the deck and manage loads.
- Premium Wiring: Equipped with a modular sealed wiring harness built to resist corrosion. Includes a standard 7-way round plug on the rear tailboard and a 7-way electrical connection at the gooseneck.
Available Factory Options
Customize your Legend X Viking Pro bed with options designed for towing, storage, and daily utility:
- Decking & Build Upgrades: Upgrade to a heavier-duty 3/16" Tread Plate floor, select a Square Back Bed (no taper) for more usable rear space, or add an integrated Gooseneck Trough.
- Cargo Control: Equip a heavy-duty outer Rub Rail for edge protection, swap standard rails for a Fold Down Rail Set, or upgrade to a complete Flatbed Bale Spike Package featuring a KTI hydraulic pump and under-bed spike storage.
- Storage Optimization: Maximize your compartments with a Pull-Out Drawer Pack to help organize tools, parts, and smaller gear.
- Styling & Accessories: Upgrade to a custom Color Match finish, add SRW/DRW fitted mudflaps, or equip a Spare Tire Mount (Standard on Cab & Chassis models).
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety, camera, and powertrain systems that directly impact upfit requirements. We offer professional, in-house installations in our Jerome service bays to seamlessly manage modern truck complexities like backup cameras, parking sensors, and DEF filler neck routing.
Our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Trailers in Jerome, ID Today
Equip your truck with the ultimate Legend X flatbed. Stop by our lot at Riverside Trailers in Jerome, ID, serving the Twin Falls, Burley, and Mountain Home communities. Call our commercial upfitting experts today to verify inventory, confirm your truck's chassis measurements, and build the perfect Viking Pro bed for your fleet!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
